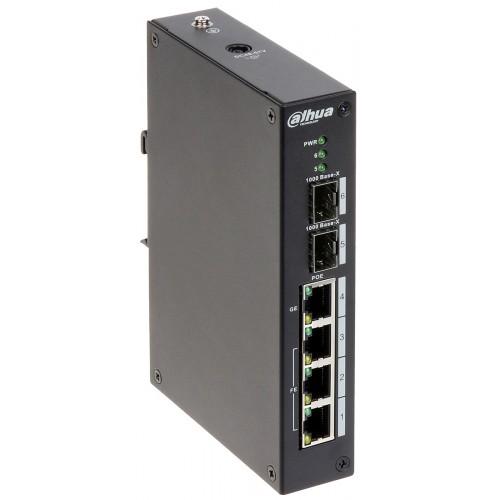

PFS4206-4P-96 este un switch cu 6 porturi Ethernet, din care 4 sunt PoE. Trei dintre cele 4 porturi PoE sunt de mare viteza, fiind capabile sa atinga 1000 Mbps, ultimul port Base-T fiind capabil sa atinga viteze de pana la 100 Mbps. Dispozitivul poate restrictiona fluxul de date cu ajutorul functiei de Flow control. Switch-ul PFS4206-4P-96 este capabil sa functioneze chiar si in cele mai extreme temperaturi, incepand de la -30°C si ajungand pana la +65°C.
- Switch PoE cu management, L2
- Adrese MAC: 8000
- Standarde: IEEE802.3af, IEEE802.3at, Hi-PoE
- 2 x Ethernet 1000 Base-X (SFP)
- 1 x Ethernet 10/100/1000 Base-T (Hi-PoE, PoE+, PoE)
- 3 x Ethernet 10/100 Base-T (PoE+, PoE)
- Protocol PoE: IEEE802.3af, PoE+ IEEE802.3at, Hi-PoE
- Capacitate switching: 6.8 Gbps
- Packet Forwarding Rate: 4.91 Mpps
- Buffer pachete: 1 Mb
- Putere disponibila PoE: 96 W
- Management: Web, SNMP V1/V2C
- Flow control: Half/ Full duplex
- Alimentare PoE: Porturile 1, 2, 3: = 30 W per port
- Portul 4: = 60 W
- Total: 96 W
- Alimentare: DC 48 ~ 57 V
- Protectie la descarcari electrice Mod comun: 4 KV
- Mod diferential: 2 KV
- Temperatura de functionare: -30°C ~ 65°C
- Umiditate: 10%~90%
- Greutate: 480 g
- Dimensiuni: 150 x 100 x 30 mm
